SPECIFICATIONS

Brand Name: ONIRII

Choice: yes

High-concerned chemical: none

Material: Aluminum/Alloy

Model Number: PD06

Origin: Mainland China

Pedal Category: Ultralight Pedal

Pedal Device Category: Pedal

Type: Self-locking Pedal

Use: Mountain Bikes,Road Bicycles

As the Northern Hemisphere enters the hot summer months, the grease inside the pedals may melt. This is normal and does not indicate bearing damage! It is not a quality issue! If this bothers you, please do not purchase!


Frequently Asked Questions, must see before purchase!!!



Question ①


Why does my new pedal stutter, is this a quality issue?


The bearings and rollers inside the new pedals need to be fully ridden before they can break in, because the bearings are well lubricated with grease.


Question ②


Why do my new pedals feel jerky when I ride on them?


The grease inside the pedals is sticky when you move the pedals by hand due to the small inertia of idling, but it is normal when you ride.


Question ③

I dismantled the axle of the pedals for maintenance, why are the pedals broken?


Professional dismantling tools and skills are needed, if you need maintenance, please go to a professional agency for maintenance or repair, please refer to the bottom of the listing for the specific operation steps.


Otherwise, we are not responsible for the damage caused by your own violent disassembly of the pedals!


Question ④


Why can't I unscrew the pedals?


The left pedal axle is disassembled counterclockwise, and the right pedal axle is disassembled clockwise.


Question ⑤


Why are the pedals so light? Are they made of plastic?


Our pedals are made of injection-molded carbon fiber, a cost-effective, efficient and high-performance composite material, which is made by blending short carbon fibers into high-performance plastics, which significantly improves performance and reduces weight.


Question ⑥


Why are there some lines on the new pedals I received, are they used, are they defects?


These are closing lines produced at the mold seams during the injection molding process of the product, which is a normal process feature of all injection molded products and does not affect any function.




Given that some buyers intentionally use empty packaging to say that we missed the product as well as the use of other brands of pedals to pretend that we send the wrong product, for the above bad behavior, please provide us with sufficient photos of the product to prove the dispute!


--------------------------------------------------------------------------------------------------------------------------------------------------------











Product Information
Brand: ONIRII

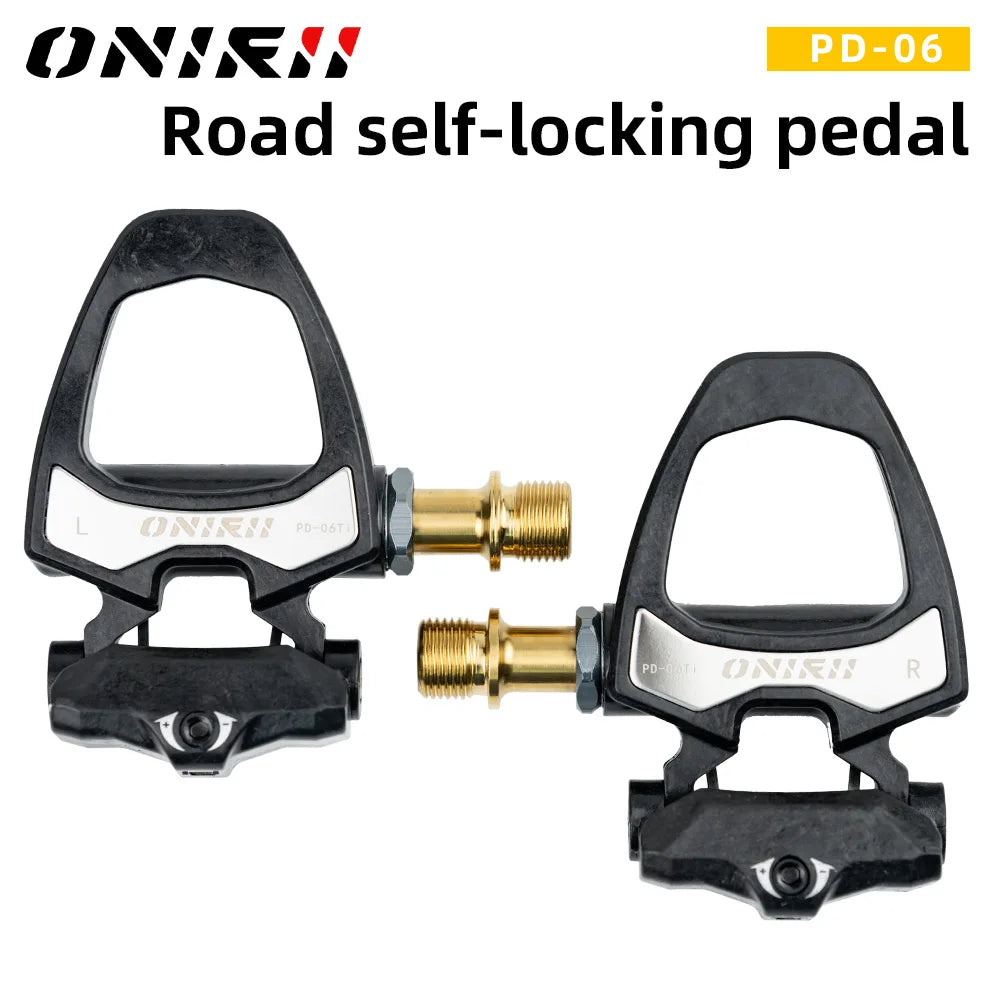

Product:Road Bike Self-Locking Pedals
Model: PD-06
Locking Plate: 6 degrees

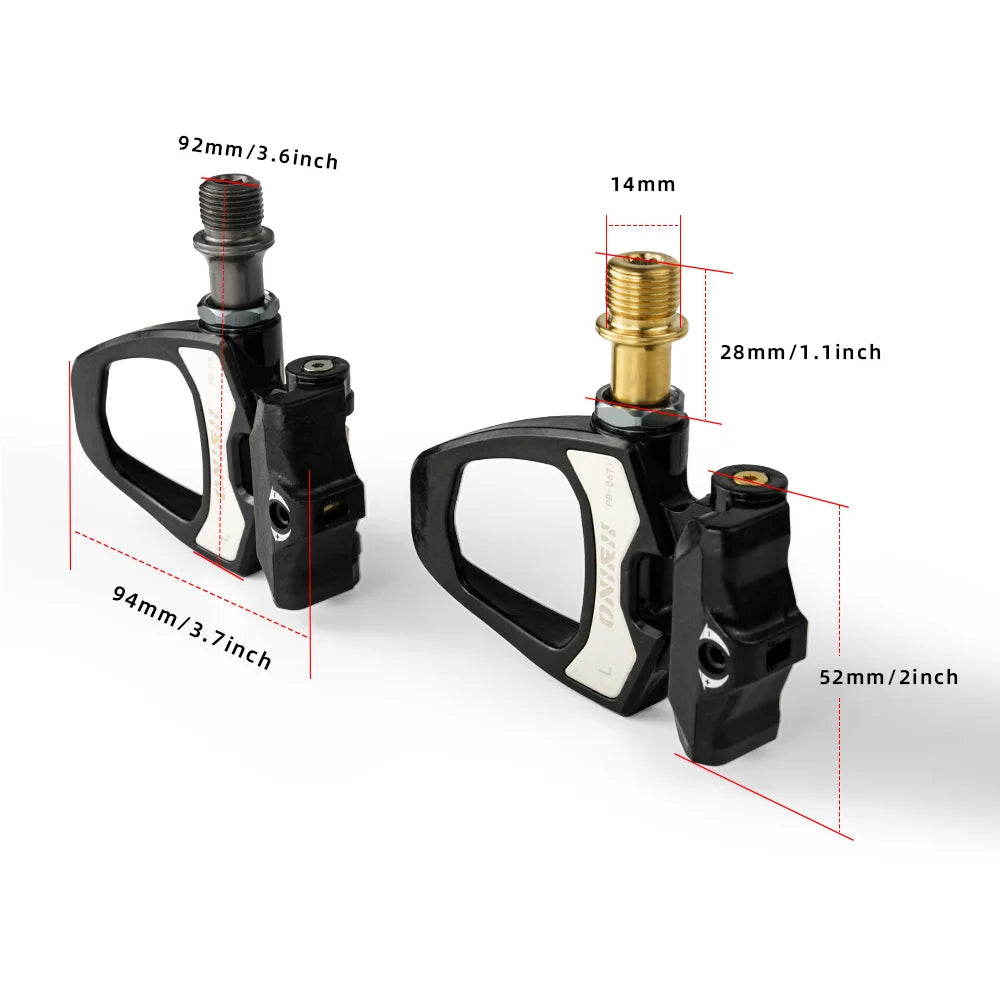

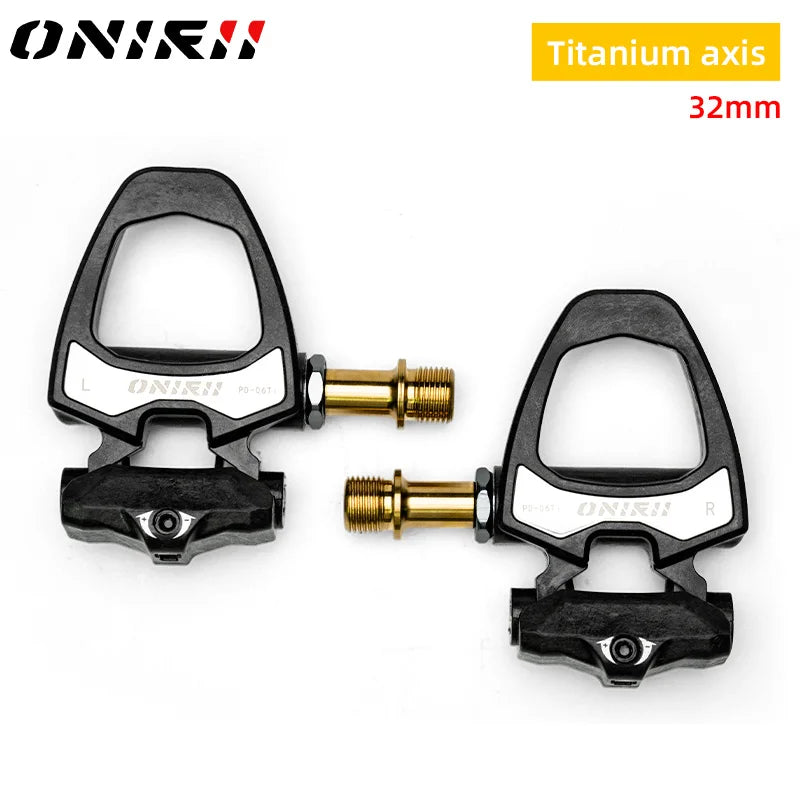

Weight: Steel axis: 252g , Titanium axis: 190g,Extended Titanium Axle:211g
Material: Carbon Fiber+Cromolybdenum/Titanium Alloy
Accessories: 1 pair of locking pedals, 2 pieces of 6 degrees locking plate, 6 screws, 6 spacers (These parts are included as complimentary items and are wear parts; therefore, they are not covered by the warranty.)





Adjustment of elasticity

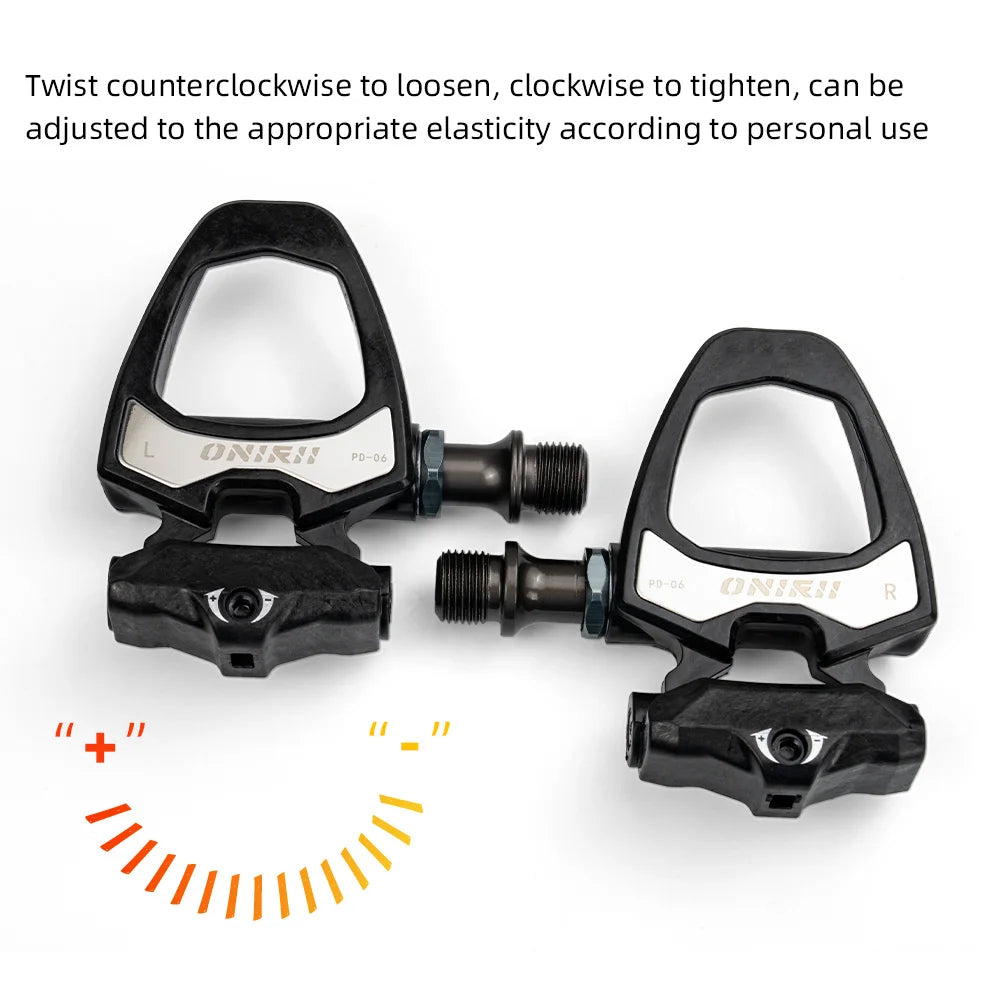

"-" counterclockwise twist is loose, "+" clockwise twist is tight, can be adjusted to the appropriate elasticity according to the individual use of the situation

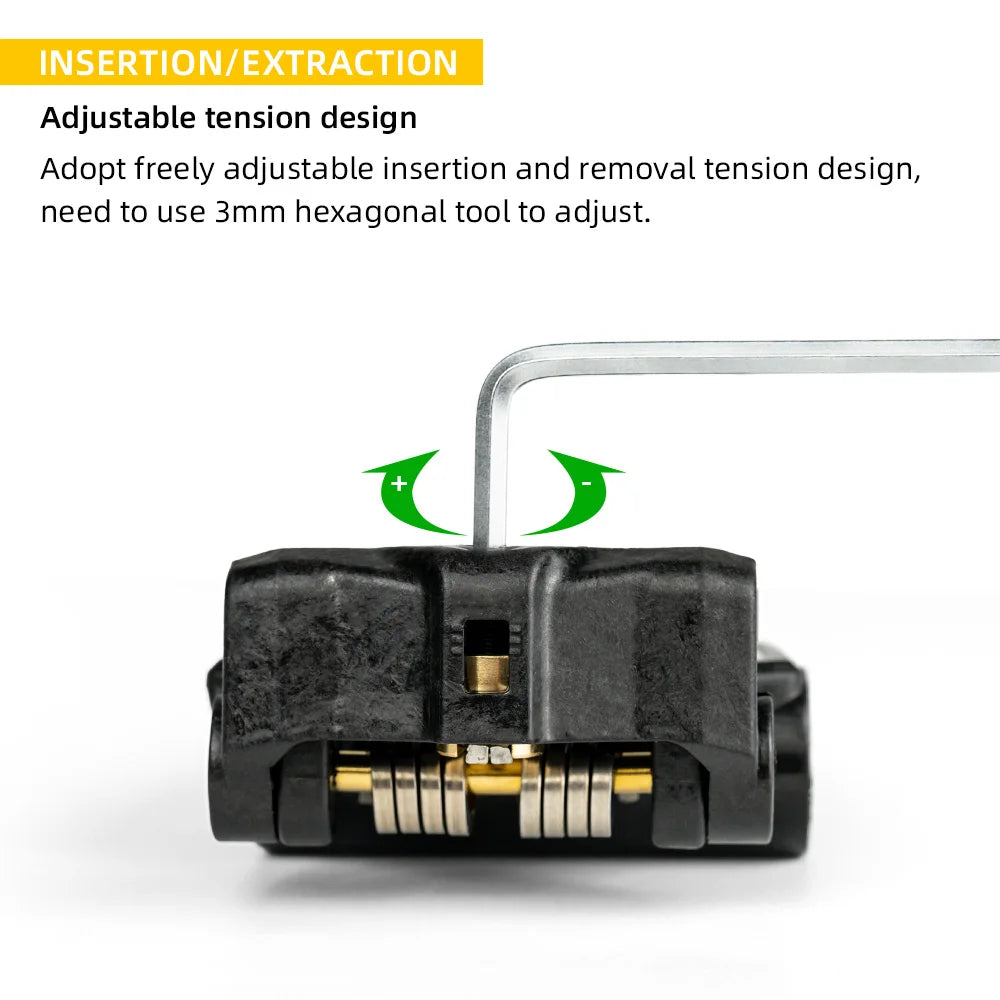

Adopt freely adjustable insertion and removal tension design, need to use 3mm hexagonal tool to adjust.

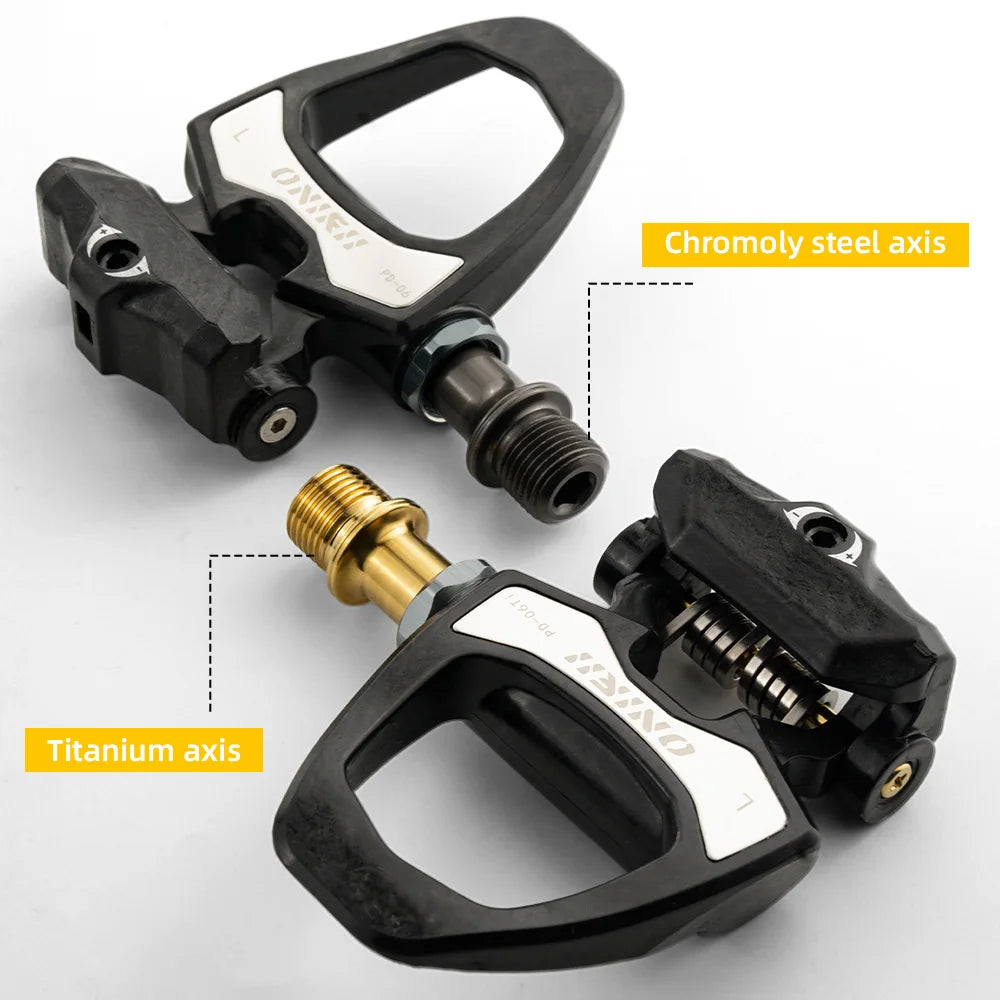

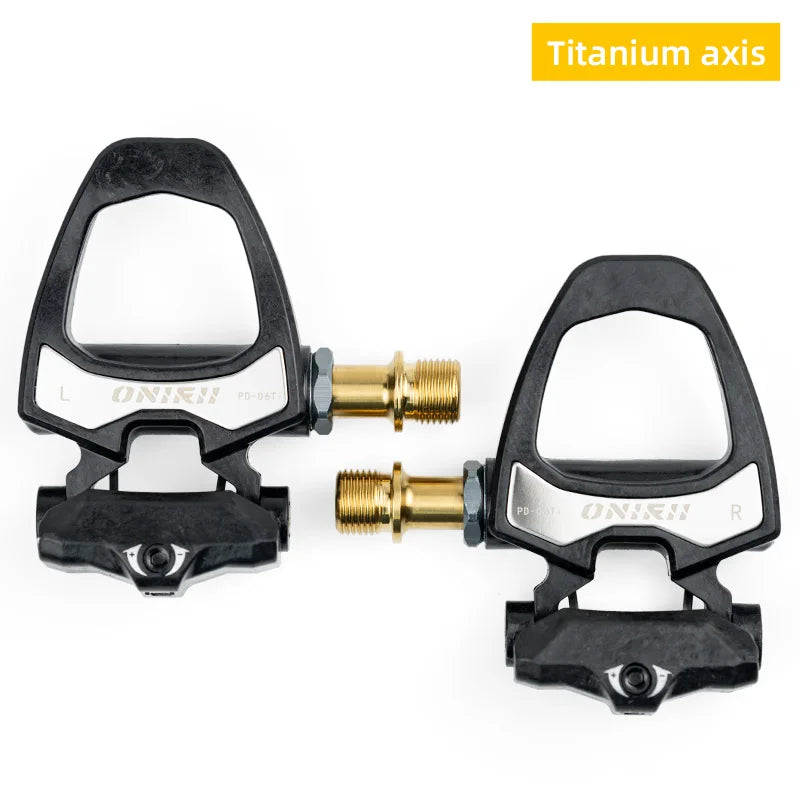

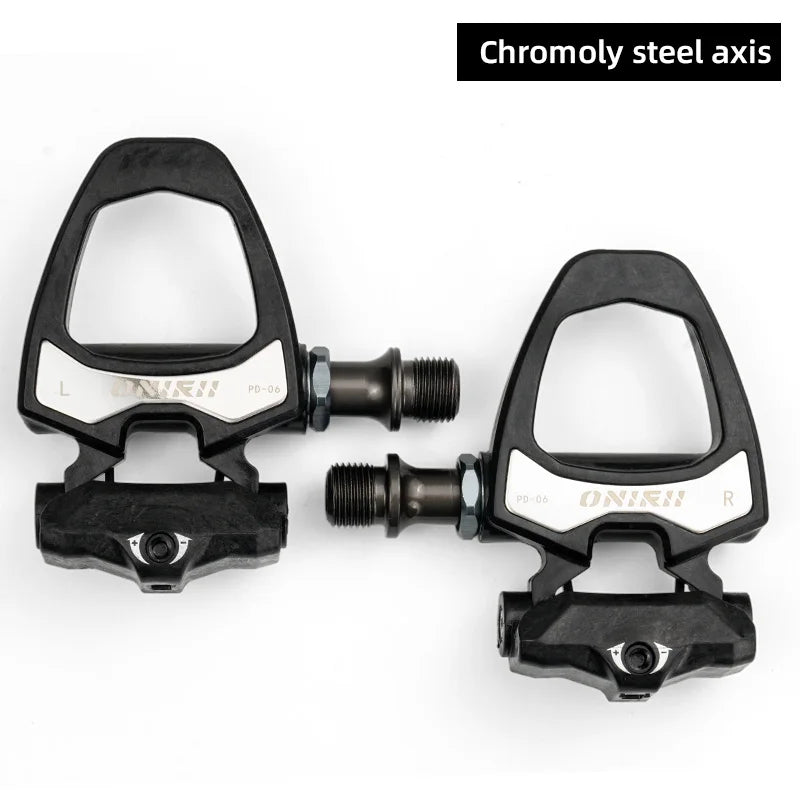

Chrome molybdenum steel/titanium alloy axis for choice.
Sensitive rotation, not easy to wear and tear, effectively ensure power transmission, increase the frequency of pedaling, titanium alloy axis version, the spindle and axis are made of titanium to effectively reduce the weight.


The L(left) and R(right) symbol is printed for easy distinction when installing the pedal.

With SPD cleats, it's easy to unlock


You can adjust the angle by 6 degrees on each side, which makes it easy to unlock. It's great for beginners who want to practice locking and riding.

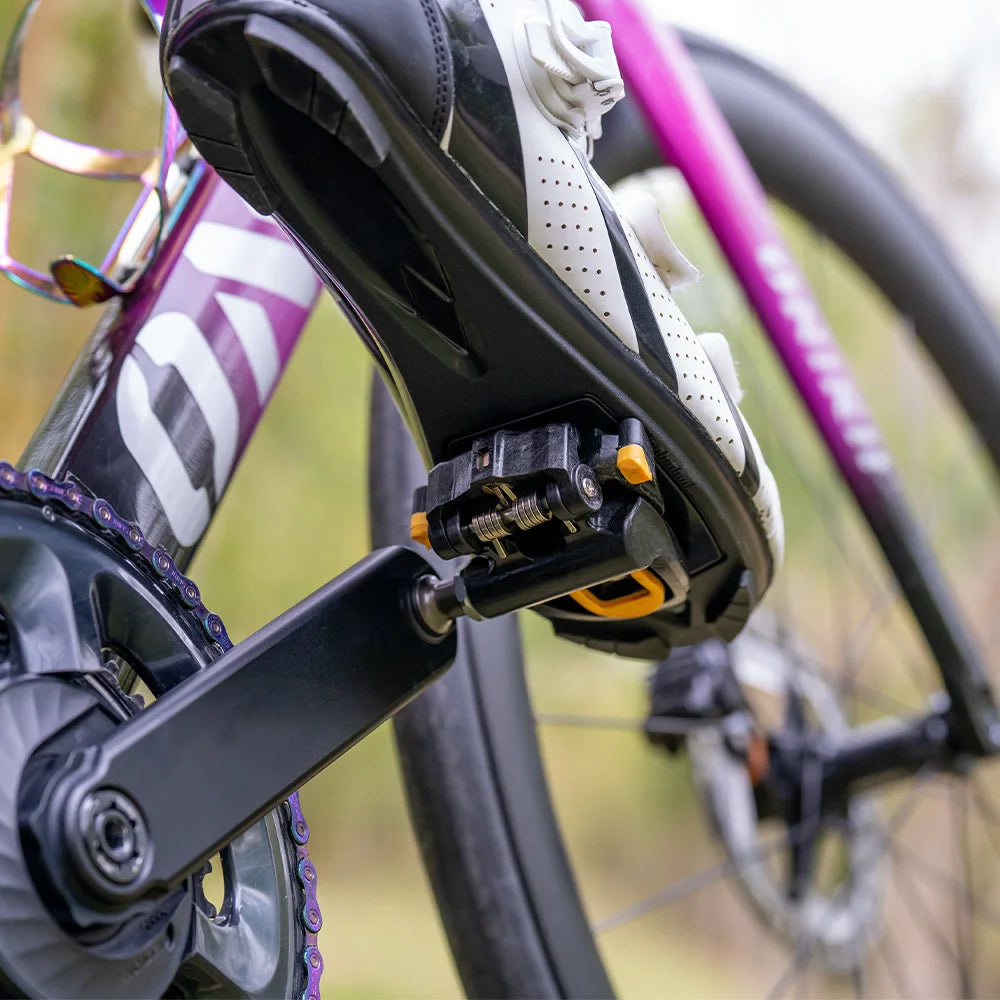

The self-locking system and seamless pedal and sole interface design let you push down on the pedals while riding, giving you stable and effective power output even during intense professional races.


(The following parts are included as complimentary items and are wear parts; therefore, they are not covered by the warranty.)



Lightweight for easy riding
A pair of titanium axis locking pedals weighs only about 200g, which does not increase the burden of riding


Carbon fiber injection molded pedals are lightweight and durable.

Bearings + High Strength Needle Roller Bearing Systems


Needle roller bearings can withstand high radial loads and have a high load carrying capacity, with a standardized design, easy to install, dismantle and maintain.

Due to the rolling friction of needle roller bearings, the coefficient of friction is relatively small and the transmission efficiency is high, which helps to reduce the energy loss
For maintaining the axis, please disassemble the axis cover in the direction as shown in the picture


* For disassembly and maintenance of the product, please refer to the bottom of the listing



Pre-purchase Notes:
1: The locking plate of the road lock pedal is compatible with spd system.
2: 1 year warranty for non-man-made damage
3: The locking plate belongs to the wear and tear parts are not covered by the warranty.



PD-06 PEDAL DISASSEMBLY AND MAINTENANCE STEPS


Before you start, you'll need to have these tools on hand.

1、Hot-air gun

2、Grease

3、PD-06 Pedal

4、6mm Allen wrench

5、8mm socket/open-end wrench

6、18mm socket or open-end wrench

STEP ①


please wear thick gloves to operate, to prevent burns !


Heating with a hot air gun, about 30-60 seconds, the longer the heating time, the better to unscrew, (NOTE: heating against the axis do not heating the body of the pedal!!!)


STEP ②


Unscrew with an 18 mm wrench after heating, loosen counterclockwise with the left pedal and clockwise with the right pedal.


Then take out the aluminum center tube and the axle from the pedal


STEP ③


Removal of the aluminum center tube and axle shaft requires the use of a 6mm Allen wrench with an 8mm socket (or open-end wrench).


We need to use an 8mm socket (or open-end wrench) to secure to the nut on the axle first, then disassemble it. Note that nut removal is counterclockwise for the left pedal and clockwise for the right pedal.


After completing this step, we have successfully disassembled the axle



STEP ④


Apply grease


The amount of grease you apply is up to you. Apply it to the bearing area of the aluminum center tube and the axle.



STEP ⑤


After the grease is applied,the axle should be inserted into the aluminum center tube properly, and the nut should be tightened with an 8 mm socket/open-end wrench.


Tighten the nut clockwise for the left pedal, counterclockwise for the right pedal,  and make sure the locking torque is at least 50kgf.



STEP ⑥


Installation of the pedal body

STEP ⑦


Then tighten with an 18 mm socket wrench.


Tighten the aluminum center tube clockwise on the left pedal and counterclockwise on the right pedal


(Note that the aluminum center tube thread must be tightened to prevent the risk of off the pedal!!!)




STEP ⑧


Completed
